How to Emulate TI-Nspire CX CAS Touchpad on Android iOS with Firebird

Firebird is  a multi-platform TI-Nspire graphing calculator emulator for Linux, Windows, Android, Mac OS X and iOS. Firebird can emulate TI-Nspire CX, TI-Nspire CX CAS, TI-Nspire Touchpad and TI-Nspire Touchpad CAS.

How to Emulate TI-Nspire CX CAS Touchpad on Android iOS with Firebird

The files that you need :

+ Download the latest version of firebird here (Android or iOS).

+ ROM / OS / Operating System. Check the latest version here.

  • Download ROM / OS at the end of the article : TI-NspireCX-4.3.0.702.tco or TI-NspireCXCAS-4.3.0.702.tcc

+ Boot 1 and Boot 2.

  • Download Boot file at the end of the article : Boot1cx.img and Boot2cx.img (for TI-Nspire CX and TI-Nspire CX CAS).

+ Flash file and Snapshot file

How to Emulate TI-Nspire CX CAS Touchpad on Android iOS with Firebird

How to Emulate TI-Nspire CX CAS Touchpad on Android iOS with Firebird

  • Extract, install and run firebird for Android or iOS.
  • Android
    Install the .apk provided on the releases page.

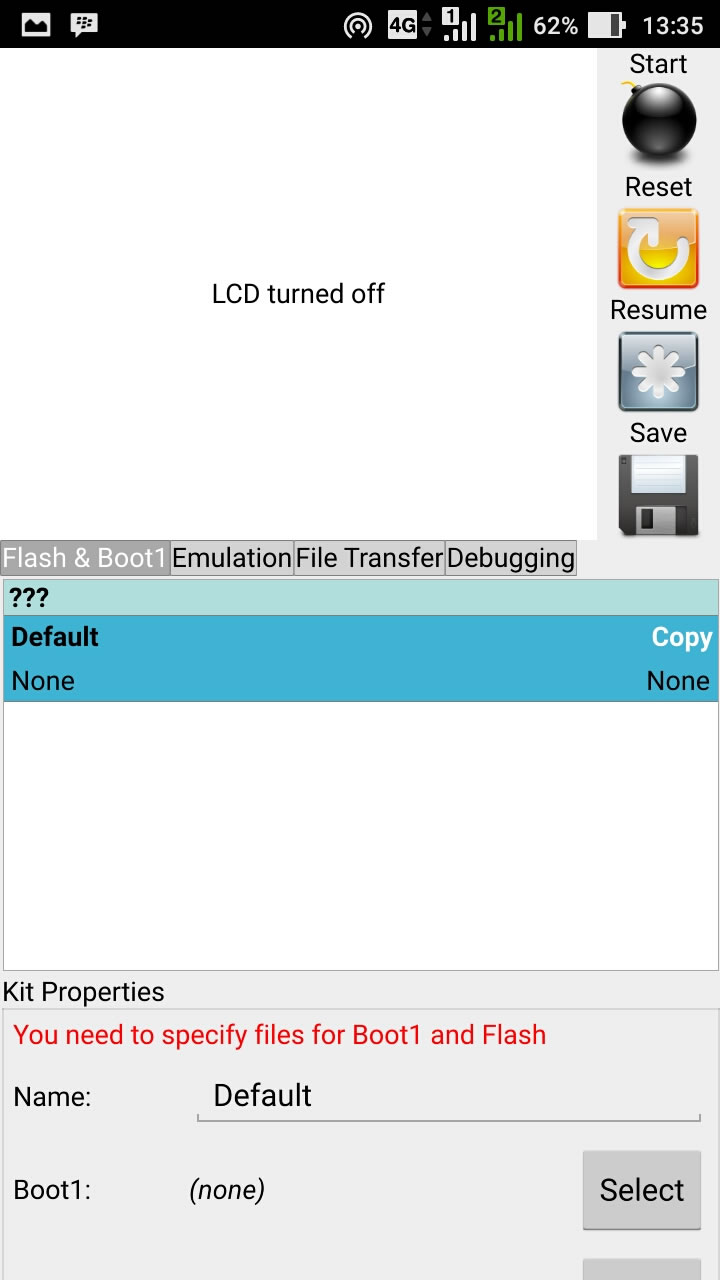

    In portrait orientation, swipe the keypad to the left (press on space between buttons) to show the configuration panel and select the boot1 and flash images you uploaded.
  • iOS
    Two possibilities:
    1. if your device is jailbroken, you can just download the .ipa file and install it with your preferred method.
    2. if it is not, or if you want to self-compile it, just follow the iOS build instructions, which will result in installing the app anyway.
    In any case, you’ll have to transfer the required files (boot1 and flash) from your computer. The easiest way to do so is with iTunes’ file sharing.
    Swipe the keypad to the left (press on space between buttons) to show the configuration panel and select the boot1 and flash images you uploaded.
  • After give the kit Name, ex:TI-Nspire CX CAS and select the Boot1, Flash images and Snapshot file. Press Start to start the emulation.

How to Emulate TI-Nspire CX CAS Touchpad on Android iOS with Firebird

  • Press “I” on keypad for installation process.

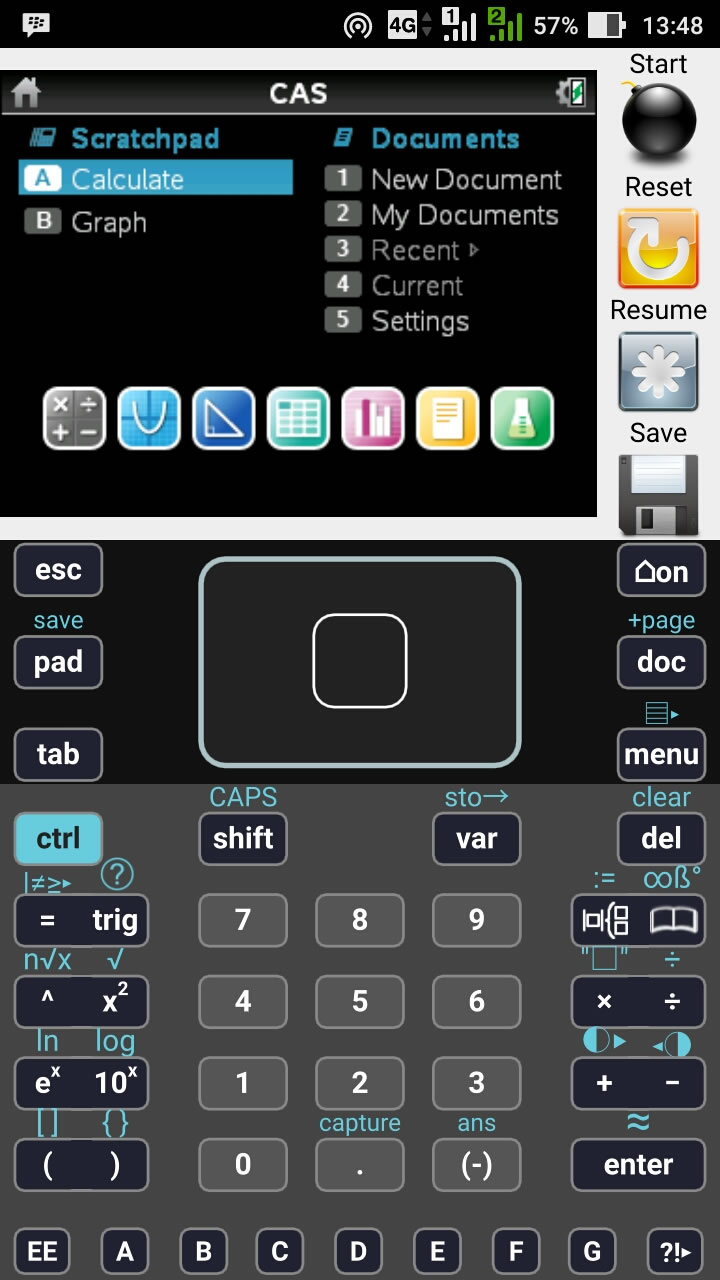

  • After emulation started and setting the language and font. Press Save to save the emulation, wait until show the message “Flash and snapshot saved” at the bottom.

How to add other graphing calculator emulator like TI-Nspire CX or Touchpad

  • Run firebird for Android or iOS.
  • Swipe the keypad to the left (press on space between buttons) to show the configuration panel.

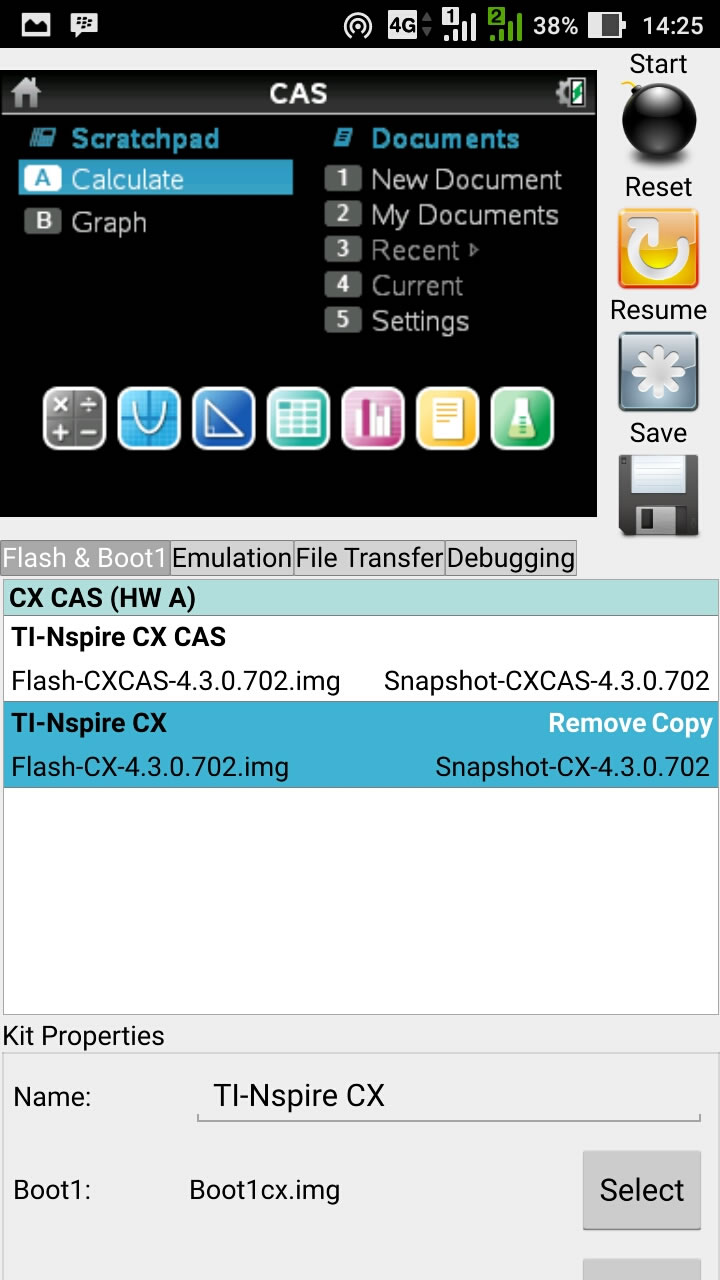

  • On Flash & Boot1 Copy the current kit to create a new kit.

How to Emulate TI-Nspire CX CAS Touchpad on Android iOS with Firebird

  • After give the kit Name, ex:TI-Nspire CX and select the Boot1, Flash images and Snapshot file. Press Start to start the emulation.
  • Press “I” on keypad for installation process.
  • After emulation started and setting the language and font. Press Save to save the emulation, wait until show the message “Flash and snapshot saved” at the bottom.

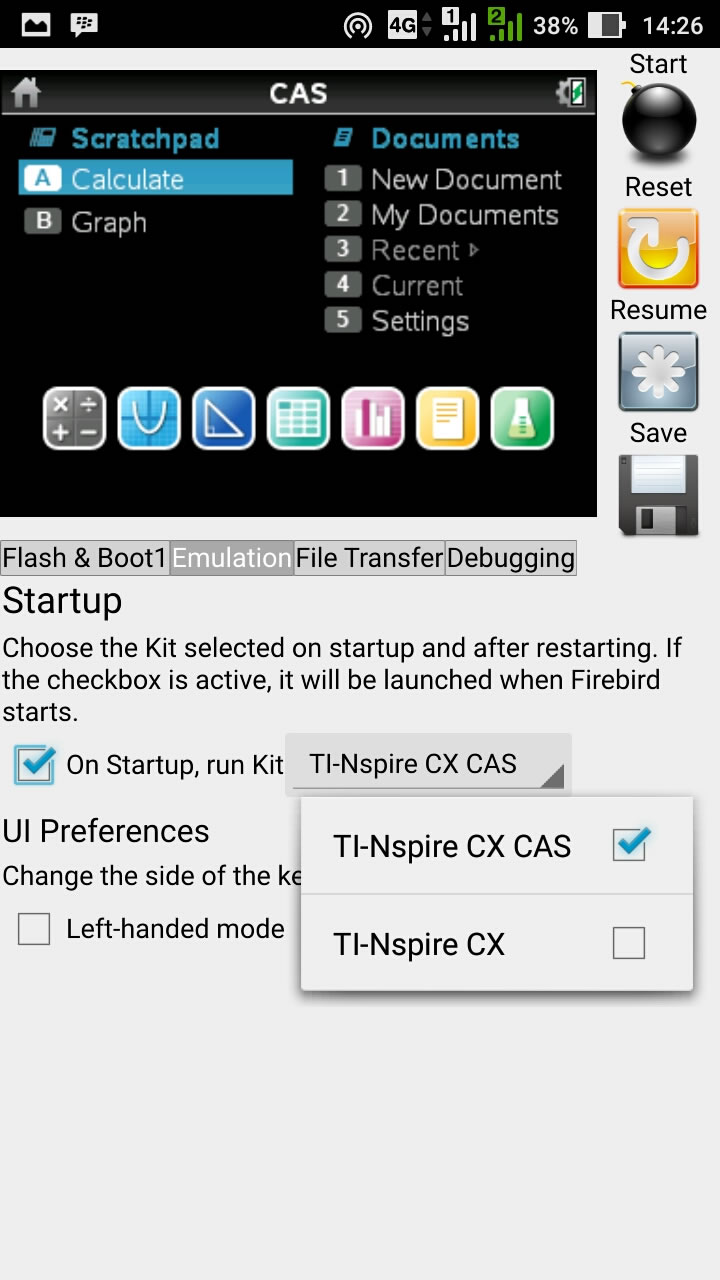

  • You can setting which default kit started on the configuration panel >> emulation

How to Emulate TI-Nspire CX CAS Touchpad on Android iOS with Firebird

With these sample files you can emulate TI-Nspire CX and TI-Nspire CX CAS on your android or iOS.

TI-Nspire CX CAS

TypeFile NameDate ModifiedSize

Boot1cx 3:44 am 01/02/2017512k

Boot2cx 3:44 am 01/02/20171.3M

Flash CXCAS 4 3 0 702 1:42 pm 01/01/2017132M

Snapshot CXCAS 4 3 0 702 12:24 pm 01/01/201722.9M

tcc
TI NspireCXCAS 4 3 0 702 12:20 pm 01/01/201712.4M

TI-Nspire CX

TypeFile NameDate ModifiedSize

Boot1cx 3:43 am 01/02/2017512k

Boot2cx 3:43 am 01/02/20171.3M

Flash CX 4 3 0 702 12:45 pm 01/01/2017132M

Snapshot CX 4 3 0 702 12:18 pm 01/01/201722.4M

tco
TI NspireCX 4 3 0 702 12:15 pm 01/01/201712.2M
